Coulter Blades Explained — Smooth, Wavy, Ripple, Turbo

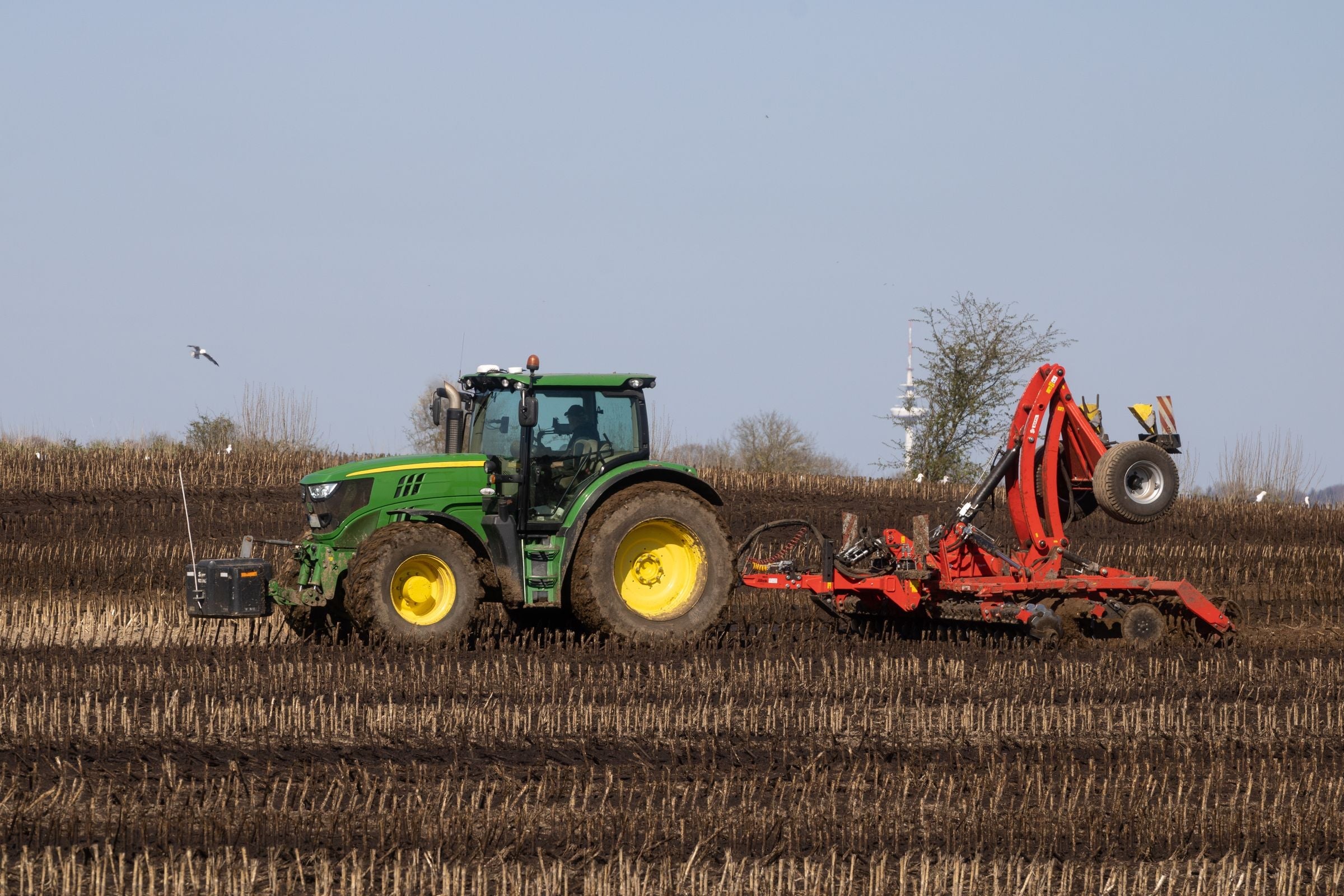

John Deere tractor pulling a red disc harrow through Iowa cropland

Coulter blades are the disc blades' quieter cousin. They mount on no-till planters, drills, and vertical tillage rigs — cutting a slot for the seed unit instead of turning over soil. Four common profiles cover most of the field.

Smooth coulter

Plain edge, no waves. Slices a clean vertical slot through residue and soil. Common on classic no-till planters — matches the pattern many John Deere and Case IH planters shipped with from the factory.

Best for: firm ground, moderate residue, planters where the row unit does the seedbed prep.

Wavy coulter

Broad, gentle waves around the edge. Cuts and lifts a wider band of soil than smooth, which gives the seed row a slight tilth boost. Not as aggressive as ripple.

Best for: firm ground with light residue where you want a bit of extra loose soil in the seed row.

Ripple coulter

Tight, sharp corrugations. More aggressive than wavy — fluffs a narrow band of soil ahead of the seed unit and handles more residue.

Best for: heavier residue, cool soils where you want a small tilth zone to warm faster.

Turbo coulter

Deeply-fluted, aggressive residue cutter. Sometimes called "13-wave" or "25-wave" depending on flute count. Chews residue in high-trash conditions where a smooth or wavy would skate.

Best for: vertical tillage rigs (Sunflower 6631, Great Plains Turbo-Till, Case IH TigerMate), heavy corn stalks, or first pass after CRP.

Wave count matters

You'll see coulters spec'd by wave count — 8-wave, 13-wave, 25-wave. More waves = smaller waves = more aggressive residue cutting. Match to your existing gang so all coulters run the same pattern.

Bolt pattern matters more

Coulters mount via bolt holes, not axles. Common bolt patterns:

  • 4-hole — most Case IH, Krause, and older John Deere
  • 5-hole — modern John Deere and Kinze planters
  • 6-hole — some Yetter and Great Plains configurations

Bring the pattern (hole count + bolt-circle diameter) when you call — that's more important than the machine model.

Shop coulters

Browse our coulter blade collection. Filtered by diameter and pattern to make matching fast.

Frequently Asked Questions

What is a coulter blade?
A coulter is a vertical cutting blade that runs ahead of a planter row unit, drill opener, or tillage tool. It slices through surface residue so the trailing implement can plant or till cleanly. Unlike a disc harrow blade (which turns and works soil), a coulter runs straight up-and-down and cuts.
What's the difference between wavy, ripple, and turbo coulter blades?
Smooth coulters make a clean vertical cut without disturbing soil. Wavy (13-wave, 8-wave, 25-wave) fluff soil while cutting — good for vertical tillage. Ripple coulters have a heavier wave pattern for more soil movement. Turbo coulters combine aggressive cut with active fracture — best for high-residue no-till.
What size coulter blade do I need?
Match the OEM spec for your row unit or tillage bar. Common sizes: 15" and 17" for planter units, 20"-22" for vertical tillage caddies, 25"+ for large-frame vertical tillage. Also confirm the mounting hole pattern (4-bolt is most common) and thickness (typically 4mm-6mm).
How do coulter blades differ from disc harrow blades?
Coulter blades are thinner, run vertical, and cut without turning soil. Disc harrow blades are thicker, concave, and turn as they roll to cut and mix soil. Coulters are the "surgeon's scalpel" of the tillage world; disc blades are the "shovel."
When should I replace a coulter blade?
Replace when the blade diameter is worn 1"-2" below original or when the edge is nicked/chipped enough to leave uncut ribbons of residue behind. A worn coulter that doesn't cut cleanly bunches trash under the row unit and causes planting problems.
